Enve Melee Carbon Road Frameset, Stem, Handlebar & Seatpost - 60cm
Enve Melee Carbon Road Frameset, Stem, Handlebar & Seatpost - 60cm
Couldn't load pickup availability
- Part Exchange Accepted
- 3 Month Warranty
- National & Worldwide Delivery
- Registered on Bikeregister
- Fully customisable from wheels to groupsets.
- Finance Available
Share

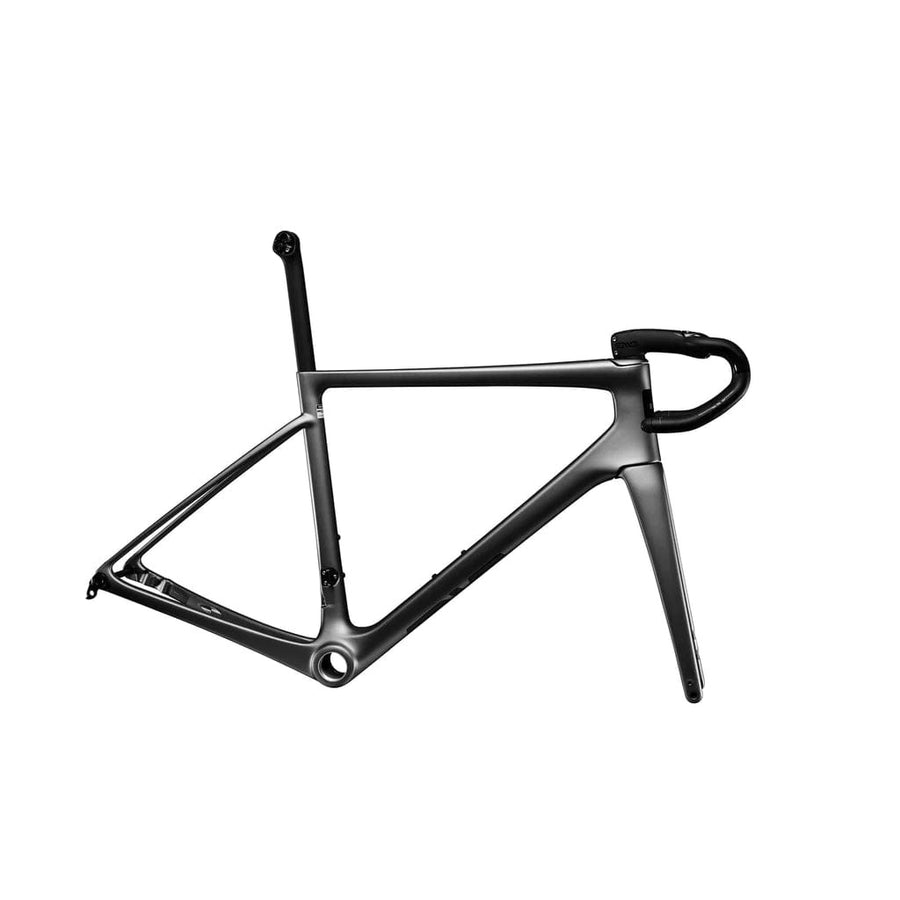

Broximo Prestige Steeds presents this Enve Melee Carbon Road Frameset
Size: 60cm but check the geometries or get in touch to confirm whether this bike will fit you.
RRP: £5,500
Specification
| Frame Material | ENVE M.O.D Carbon |
| Fork Material | ENVE M.O.D Carbon |
| Handlebar | ENVE Carbon SES AR Handlebar |
| Stem | ENVE Aero Stem |
| Target Application | Road Race/Performance |
| Sizes (cm) | 47, 50, 52, 54, 56, 58, 60 |
| Fork Rake | 55, 51, 47, 43, 39 |
| Frame Size/Fork Rake | 47cm/55, 50cm/51, 52cm/47, 54cm/47, 56cm/43, 58cm/43, 60cm/39 |
| Frame Weight | 850g +/- 2% (Size 56, Painted, No Hardware) |
| Headset | ENVE Integrated IS52/IS52 Internal Drop-In |
| Headset Bearing | 1.5″ IS52 Upper and Lower |
| Seat Post Diameter | ENVE Aero |
| BB Type | T47 Inboard Bearing |
| Brake Mount | Flat Mount |
| Front Axle | 12×100 (Total Length: 122, TP:1.5, TL:15) |
| Rear Axle | 12×142 (Total Length: 168, TP:1.5, TL:14) |
| Minimum Tire Size | 25c |
| Optimal Tire Size | 27c-32c |
| Maximum Listed Tire Clearance | 35c |
| Frame Routing | Internal |
COMPONENT COMPATIBILITY
| Handlebars | SES AR (38, 40, 42, 44, 46) |
| Stem | ENVE Integrated (80, 90, 100, 110, 120, 130) |
| Seat Posts | Aero 275mm x 0 Offset Aero 350mm x 0 Offset Aero 350mm x 20 Offset |
DRIVETRAIN COMPATIBILITY
| Shimano Mechanical 1x | Yes |
| Shimano Mechanical 2x | Yes |
| Shimano Electronic Di2 (1x/2x) | Yes |
| SRAM Mechanical 1x | Yes |
| SRAM Mechanical 2x | No (Melee requires continuous housing for FD) |
| SRAM AXS (1x/2x) | Yes |
| Campy Mechanical 1x | Yes |
| Campy Mechanical 2x | No (Melee requires continuous housing for FD) |
| Campy Wired EPS | No |
| Campy Wireless EPS | Yes |
Brake Rotors
| Fork |
Fork is 160mm only
|
| Frame |
Rear brake/frame is 140mm or 160mm with adapter.
|
Description
The Melee is a modern road racer that delivers on ENVE’s Real-World Fast™ design philosophy. Built for agility and response, with 35 mm of tire clearance, the Melee is ready for criteriums and classics alike.
An ENVE Chassis is the canvas upon which you can build your dream bike. The Melee is sold as a chassis-only which includes the frame, fork, headset, stem, handlebar, and seatpost.
The Melee takes design cues from our own Custom Road, but where the Custom Road prioritizes customization, the Melee prioritizes efficiency and speed. With geometry and handling characteristics optimized for 27 to 32 mm tires, the Melee is a modern road race bike engineered to provide the performance competitive riders demand. The Melee performs in all the areas that count – efficient power transmission, weight, aerodynamics and versatility. To achieve the versatility today’s road racers require, the Melee provides riders with up to 35 mm of tire clearance.
Building on ENVE’s foundation of Real-World Fast™ aero technologies, the Melee has been designed to complement the SES™ wheel line and to deliver aero efficiency that places it amongst the fastest bikes on the road. Tailoring tube shapes to complement SES™ rim shapes allows the Melee to efficiently pair with any ENVE SES™ or Foundation wheelset. Features such as the Integrated Front-End ensures the Melee is aerodynamically optimized as the wires and hoses are routed internally to be out of sight and out of the wind.
REAL-WORLD FAST™
Developed in CFD and the wind tunnel, the Melee features refined tube shapes that have been tuned to complement ENVE’s SES™ rim shapes and deliver aerodynamic performance that is ready to battle with the fastest bikes on the road. Full front-end integration contributes to the Melee’s slippery design.
Real-World Fast™ Defined:
- Balanced for aero efficiency and weight savings
- Tube shapes complement SES rim shapes
- Integrated Front-End hides wires and brake
- Wind tunnel tested for performance at 32 kph/20 mph and 48 kph/30 mph
INTEGRATED FOR SPEED
The Integrated Front-End routes wires and hoses through the bar, stem, and headset where they’re secured using ENVE’s anti-rattle frame finishing kit. This allows internally routed hoses and wires to remain silent, out of sight, and out of the wind. Featuring the two-piece Integrated Aero Stem and SES AR Handlebar, the Melee capitalizes on the conveniences of a two-piece handlebar and stem while maximizing the aerodynamic benefits of the streamlined design.
INTEGRATED AERO STEM
ENVE's new Integrated Aero Stem debuts with the Melee. This stem takes design cues from the Aero Road Stem but allows cables, wires, and brake hoses to pass from the handlebar into the head tube. The -7 degree stem is available in 80, 90, 100, 110, 120, and 130 mm lengths. Compatible with the ENVE x K-Edge Aero Stem accessory and computer mount.
AERO SEATPOST
The Melee features an all-new aero seatpost with a Kamm tail design and ENVE's patented twin-bolt saddle rail clamp design. Available in straight or 20 mm setback and compatible with 7x7, 7x9, and 7x10 mm saddle rails.
MATERIAL OPTIMIZED DESIGN (M.O.D.)
We are carbon experts, artisans of our craft, using the best material for the application and making the products that we want to ride. At ENVE, we design and build to the strengths of carbon fiber. This means running continuous fibers throughout the frame and fork, tapering the laminate, and removing excess material to save weight. Carbon fiber is layered and oriented to achieve zone-specific performance requirements like impact toughness, stiffness and compliance. M.O.D. is giving you everything you need, and nothing that you don’t to perform when the rubber hits the road.
35MM OF FREEDOM
Given the Melee’s race-bred pedigree, geometry and handling characteristics are tuned for tire sizes between 27 and 32 mm. However, the needs of the day may dictate that more tire volume will result in more speed. When the moment presents itself, a max tire clearance of 35 mm means that your Melee will be ready.
Threaded T47 Inboard-bearing bottom bracket
Featuring a threaded T47 inboard-bearing bottom bracket for smooth, silent, creak-free operation. Your bottom bracket is the last thing you should have to think about.
Condition
